Description

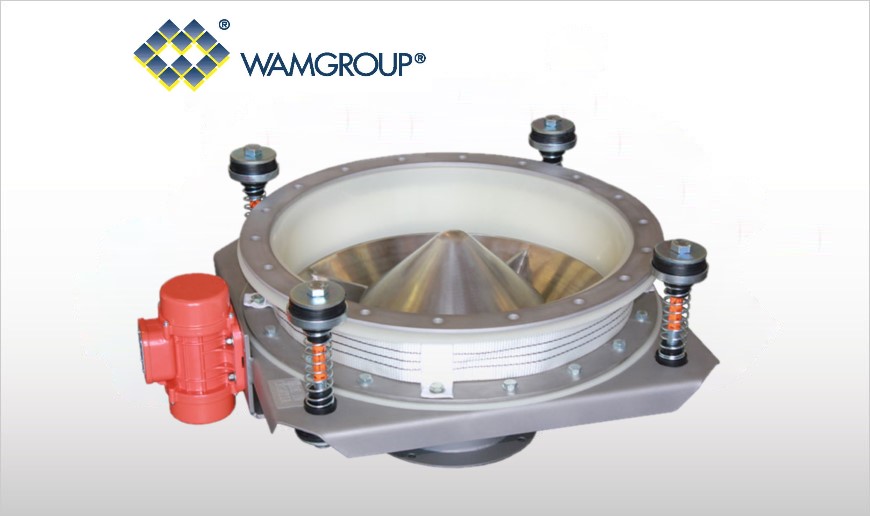

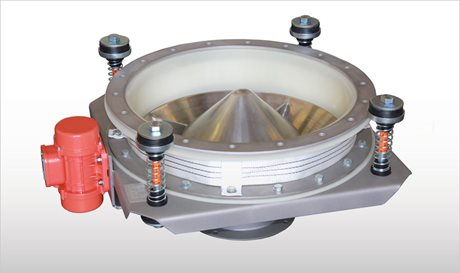

The BAF Bin Activator for Food Applications is a device of tapered conical shape that, due to vibration, facilitates material flow from hoppers or silos during discharge.
Manufactured from stainless steel, the BAF Bin Activator line offers a high surface finishing grade. The mating parts are continuously welded on both sides, deburred and smoothened on the edges, niches, cracks, and crevices, thus obtaining a perfectly smooth surface. As a result, material residue is reduced to the minimum.BAF Bin Activators consist of a seamless 304L or 316L stainless steel cone manufactured on a sheet metal lathe, a seamless gasket with integrated upper and lower flanges manufactured from food-grade SINTAL engineering polymer, suspensions connecting the Activator with the silo cone, as well as one or two electric motovibrators by OLI.
Features
Q = 5 ~ 320 m3/h (3 ~ 190 cfm)
Range: Ø 400mm (16 in) ~ 3,000mm (10 ft)
European Regulation (EC) No. 1935/2004-certified
Material: 304L / 316L stainless steel
70% less welding seams than in traditional bin activators
Seamless heavy-duty activator cone
Hygienic design
High surface finishing grade
Low power requirement
Outlet flange for VFP food-grade Butterfly Valve by WAM
